Antenna Solution

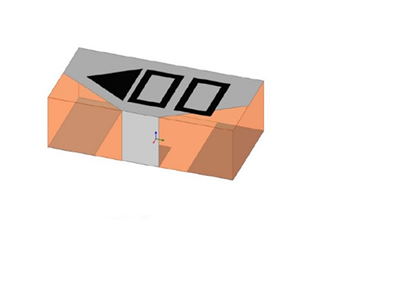

Ceramic DCA Antenna (AMAN402012ST02)

제품소개

• Linear / Omni-directional
• Size: 4.0 x 2.0 x 1.2 mm
• Gain: 3.0 dBi
• Eff: 63% (CH5), 50% (CH9)

핵심경쟁력

• Compact size
• SMD

Application

• Digital Key (Tag)
• Home IoT Device (Tag)

Ceramic LTCC Antenna (ALA353510US01)

제품소개

• Linear / Directional
• Size: 3.5 x 3.5 x 1.05 mm
• Gain: 3.5 dBi
• Eff: 27% (CH5), 46% (CH9)

핵심경쟁력

• Compact size
• SMD

Application

• Smart Door Locks (Anchor)
• RF Modules (Anchor)
• Mobile Devices (Anchor)

Metal Stamped Antenna (AMO-MA-ST003)

제품소개

• Linear / Directional
• Size: 13.0 x 7.8 x 3.0 mm
• Gain: 4.0 dBi
• Eff: 63% (CH5), 70% (CH9)

Application

• Smart Door Locks (Anchor)
• Home IoT Device (Anchor)
• Solar Panel (Anchor/Tag)

FPCB/Cable Assembly Antenna

제품소개

• UWB Linear Polarization Antenna(6.2GHz~8.2GHz)

핵심경쟁력

• On-Ground로 주파수 안정적
• Thin Thickness

Application

• Anchor/Tag
• Indoor navigation
• Access Control

Patch Antenna (AUA Series / Single Port)

제품소개

• CP(Circular Polarization) / Directional
• Size: 30 x 30 x 3 mm
• Connector : U.FL(MHF)
• Cable: Dia. 1.13mm L=100mm
• Axial Ratio: Typ. 2~4dB @ CH 5, CH9
• VSWR: Typ. 2.0~2.5 @ CH5, CH9
• Mount: Screw (Dia. 2mm x 4EA)

핵심경쟁력

• Axial Ratio 특성 우수
• Circular polarization 특성 우수

Application

• Anchor/Tag
• Indoor Navigation
• Access Control

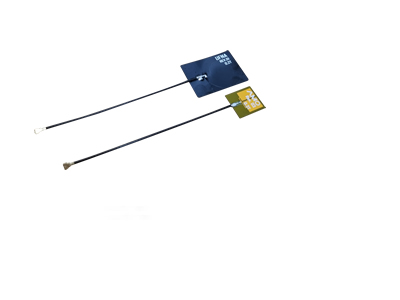

Patch Antenna (AUDA Series / Dual Port)

제품소개

• CP(Circular Polarization) / Directional
• Size: 30 x 30 x 3 mm
• Connector : U.FL(MHF)
• Cable: Dia. 1.13mm L=100mm-2EA
• Axial Ratio: Typ. 2~4dB @ CH 5, CH9
• VSWR: Typ. 2.0~2.5 @ CH5, CH9
• Isolation: min. 20dB
• Mount: Adhesive tape

핵심경쟁력

• Axial Ratio 특성 우수
• Circular polarization 특성 우수

Application

• Anchor/Tag
• Indoor Navigation
• Access Control
